BEST QUALITY CHINA MANUFACTURERS LED STREET LIGHT CHZ-ST42

MODEL:

CHZ-ST42

LED CHIPS:

LUMILEDS 5050

COLOR TEMPERATURE:

3000K / 4000K / 5000K / 5700K / 6500K

DRIVERS:

SOSEN / INVENTRONICS

BEAM ANGLE:

TYPE II TYPE III TYPE V

REGULATION:

0-10 فولت/مؤقت/دالي

VOLTAGE:

100 - 277V / 200~240V

POWER FACTOR:

> 0.95

ELECTRICAL CATEGORY:

الدرجة الأولى / الدرجة الثانية

MATERIALS:

AL الإسكان / AL Heatsink / عدسة الكمبيوتر

PROTECTION(IP / IK):

IP66 - IK08

INSTALLATION:

Ø 60 ملم

LIFETIME / WARRANTY:

60.000 ساعة / 5 سنوات

WORKING ENVIRONMENT:

- 40ºC ~ + 55ºC / 10%-90%RH

CERTIFICATIONS:

CE CB ENEC ROHS ISO9001 ISO14001 ISO50001 ISO45001

استفسار

أكتب مراجعة

Описание продукта

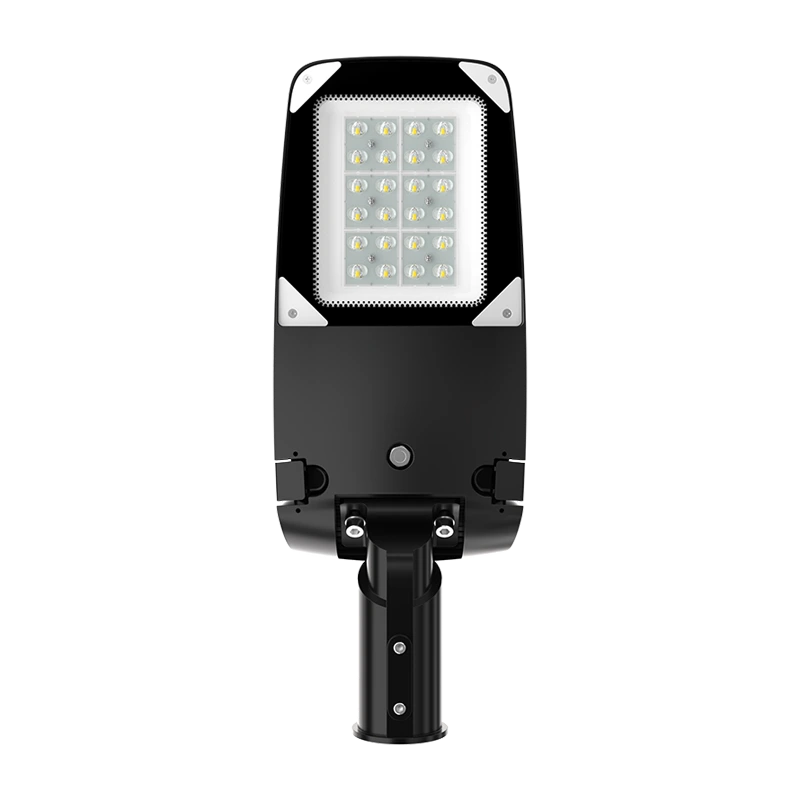

Best quality china manufacturers LED street light CHZ-ST42

1. High pressure die-casting aluminum housing wth quick heat ventilation.

2. Excellent thermal management and outstanding self-cleaning capability.

3. High efficient SMD5050 chips and high quality driver, assures long lifetime.

4. Multiple beam angle optics for options according to various lighting applications.

5. Integrated handle and heat-sink housing together, this structure will be more strong and cost-saving.

Model No.	Power(W)	Chips	Chips Qty	Chips S/P	Protection Class	Lumen(LM/W）
ST42-40WS	40	SMD5050	36	2S18P	Class I / II	>160
ST42-50WS	50	SMD5050	36	2S18P	Class I / II	>160
ST42-60WS	60	SMD5050	36	2S18P	Class I / II	>160
ST42-80WS	80	SMD5050	36	2S18P	Class I / II	>160
ST42-80WM	80	SMD5050	72	2S36P	Class I / II	>160
ST42-100WM	100	SMD5050	72	2S36P	Class I / II	>160
ST42-120WM	120	SMD5050	72	2S36P	Class I / II	>160
ST42-150WM	150	SMD5050	72	2S36P	Class I / II	>160
ST42-180WL	180	SMD5050	120	2S60P	Class I / II	>160
ST42-200WL	200	SMD5050	120	2S60P	Class I / II	>160

SMD5050 High quality LED wick

Low power consumption and high brightness

SMD LED Chips

Hiah Brightness

100-277V

Efficient Cooling

Service life

Optional optical controller

Super white toughen glass cover

Lumileds chips and PC lens

High-pressure die-cast aluminum manufacturing

Angle opening and closing design

Pole mounted

Сценарий применения

Widely used in trunk roads, highways, elevated roads, streets, bridges, sidewalks and other road lighting, as well as squares, schools, parks and other outdoor lighting needs.
